Futura Shock Rebuild / Revalve
Took the shock apart and it has a snap ring below the seal head so that makes things a little difficult to take it apart but finally got it apart and and took some pics of the piston and the shocks valving.

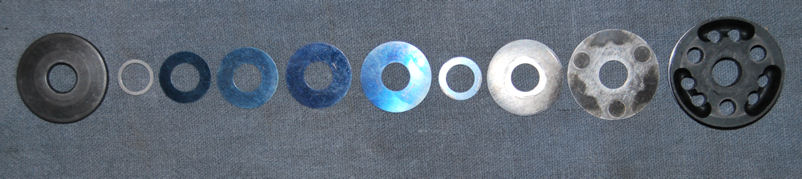

Compression side of piston and it's stock valving:

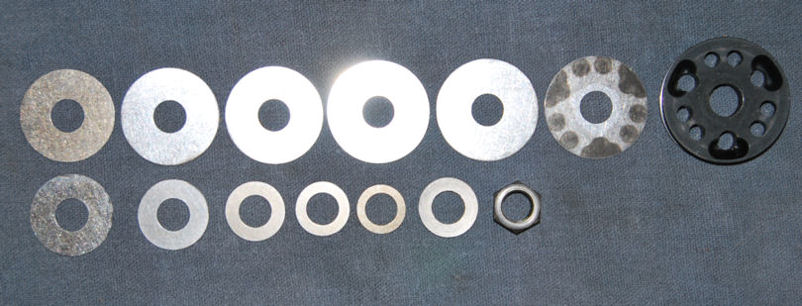

Rebound side of piston and it's stock valving:
Stock compression valving is as follows:
.15 x 38
.15 x 32
.15 x 18
.15 x 30
.15 x 28
.15 x 26
.15 x 22
.50 x 15 Clamp
Stock rebound valving is as follows:
.30 x 38 (3)
.30 x 36 (2)
.30 x 34
.30 x 30
.30 x 26
.30 x 22
.30 x 20
.30 x 18 Clamp
Note: Dimensions are in mm and number in parentheses is quantity of that shim.
